Testing, Testing, 1 2 3 4 5..........

Lots of testing, because in a few days, my self proclaimed video competency is going to be put to the grinding wheel.

Thirty interviews over a month in several locations, none of my chosing, but within tolerances, then to be mixed together for a set of quick fire short films about the schools three learning parameters (Curiosity, Courage and Compassion).

So far we have;

G9 set to Natural, flat settings, with the Kenko 05 Black Mist filter used to slightly soften contrast, smooth Bokeh and helps control highlights. All very cinematic.

White balance will be set manually, exposure also using Zebras and the Histogram. I a more comfortable with the Histogram, looking for the subject to sit slightly right of middle when introduced.

The 25mm f1.8 will be used wide open, which is not as risky as it sounds in M43, but still needs some care with focus. This will provide (on this lens), a nice relaxed middle ground between a true portrait lens and wider angle, with gorgeous Bokeh, added to by the filter. An ND filter will be applied if required.

Thi combo seems to give plenty of warmth and oomph, without harshness. White balance is the key.

This lens and the natural profile have been tested over and over and provide a perfect balance of smooth/sharp, with softer Bokeh than the 17mm and less compression and contrast (room needed) than the 45mm. If I am forced to use wider or longer lenses in later shoots, the settings will be reduced to -1 contrast for the 45 and -1 sharpness for the 17, to help take the edge off these.

For lighting, I am sticking with a simple three light setup;

The main light will be natural if possible or a 5500k balanced Neewer 480RGB panel into a white brolly or through a diffusion disc (disc most likely unless it is too contrasty). I may switch to the Neewer SL-60w when it comes for bigger spaces.

Fill will be either a small reflector or nothing, depending on the softness achieved with the main light.

A small hair light will be used (176 Neewer), set to light amber and very low, which will contrast well with the slightly underexposed background, unless a background light provides this.

Backgrounds will be as they come, but darkened and blurred. In the first room, there are a pair of soft down lights in the background, framing the subjects nicely.

Sound is, after exhaustive testing and re-testing, coming from the Zoom H5 with the SSH6, using the wind muff, vocal compression and mid/side set to off, which sounds to my ear, the fullest and most rounded sound and the muff removes the slight sibilance, which I don’t like and it is the most reliable*. The Lewitt mics are more open sounding, but lack the same vocal depth and the Boya LAV, which is very good, is a little fiddly for fast turn around. The Zoom will be at 45 degrees above and in front of the subject and about 1 foot away. I will take the Neewer, Boya and H1 as backups. Gain 5.5 seems about perfect as a starting point.

*The Lewitts seem to suffer from early drop-out when first connected, which I am guessing comes from phantom power draining the NiMH batts (they often go from 3 to 1 bar when this is turned on). It comes right after a few seconds, but then can drop away again (again battery drop?). This is something I am going to fix with an AC adapter, but until then, it is a little too twitchy for my needs.

Lighting, Media And Brain Melt

Hello again.

As I have said before, M43 has a huge advantage when using flash for still photos.

The 2 stop advantage over full frame is real. Shootng with artificial lighting is a fixed math formula for all formats, but M43 needs only a quarter as much to achieve the same depth of field! Sometimes, when I am doing a job, I bring out the “big guns”, a set of 5 YN560 units, all reasonable, but dumb mid range camera flash units and it dawns on me that to do this with full frame (where f4 becomes f8 etc), I would need several mono blocks, not cheap little flashes.

To this day, I have not ever needed to use all of my flash units on full power, so my maximum potential is untapped.

Ok, so now we are doing video. This is where it is harder, but some of the advantage is intact. Generally for video light has to be constant which is harder to achieve than strobe lighting. It also has to be used with fixed shutter speeds and low ISO’s, so the M43 advantage is a little less sure footed.

With this in mind I have bought a bargain Neewer 60w point light LED as a safety net. It cost less than $100au and I already have several modifiers that get little use with my stills kit (26” double baffle soft box, 80x30cm double baffle strip, 24” square double baffle with grid and 2x 7” diffusers with 6 grids and diffuser cloths), so no accessories needed.

A point light gives me a strong and controllable directional light, one that can be diffused and/or focussed, where my 480 and 660 panels lack that much control (or as much strength).

If it works well (and it reviews well against the Godox SL60w, even having slightly warmer light), then I will get a second.

On my shopping list I actually had a 10.6” Flapjack light, but on deeper researching, it looks like they still need controlling and even more diffusion to be a primary light, adding nothing much to my existing kit. The Point light on the other hand adds grunt and direction, it just needs diffusion, which I have.

The 480 can now be used for background colour, the 660 for fill and the little 176 for hair light. If I need to go battery only, I can get by, but logic says I will have power if indoors.

A project I am working on now, thirty talking head interviews in differnet locations around the school, needs a primary light (window or the 480 into a reversed umbrella), hair light (176 with an amber gel) and back light (a 216 with coloured gel). The reversed 480 with umbrella at only 1m from the subject is a little clutterred, with the stem jutting out a fair way. The 60W at 2m and a bigger brolly would be safer and more powerful.

The first look I liked, the 480 through a diffuser panel at about 2m. The panel was set at 50% and 5500k, so getting closer will give me a ton of power in reserve.

This is the 480 into a 40” brolly (shooting throught produced hot spots), with a small hair light (176 LED at 10% with amber gel or optionally a reflector), both at about 1m. This is the softest light, but maybe too soft and I dislike the stem sticking out towards the subject at only 1m. The first room I am in has a gorgeous window with a full length semi-translucent blind, which I may simply supplement with the 480. I will likely go with a combo of the above, slightly feathered and a hair light for separation.

After some testing the project has come down to;

The G9 in Natural +0/-2/+0/+2, 10 bit 422, 1080p, white balance at B2/M2, then set the white balance to the main light (5500k usually).

The main light will be a 480 through a feathered diffusion disc or into a reversed brolly, with a hair light and some flagging to arrest spill, or I will use window light, but best to be prepared.

The 25mm f1.8 wide open was chosen as my available space may be limited and its look wide open is warm and generous with gorgeous blurring. It will be filtered with the Kenko Black Mist 05. Without the filter, I would reduce the saturation and sharpness.

Exposure will bet a -1 to darken the background, then lifted to bring out the main subject. I will histogram this, but also match each job by eye for consistency.

A sample lifted from a video test (my poor wife, trying to earn the real money). A busier background than I will use, but the basic colour and main light (window) are good.

Sound will be a Lewitt 040 pencil condenser boomed 8” above and in front of the speakers mouth, run through the H5. This combo blew away all of the competition with the Neewer/Boya mini shotguns coming in second or optionally the SSH6 when used as a shotgun at 1m, not a boom. At gain 6, the Lewitt just filled the space with clean, full presence.

The Zoom and shotgun capsule or Boya boomed will be used if we go outside or for some environments. Without the Lewitts, I would just use these for consistency.

Eight Dollars Well Spent?

I got the cheapest lens adapter in the world to other day ($8), for the Helios 44-2 screw mount. It does not convert the 58mm to a full frame focal length equivalent like a Metabones or similar, so 116mm f2, here we come.

I must admit, I skimped on the adapter, for two reasons.

1) The lens is a little long to be super useful and I have shorter options.

2) The lens is a little rough. The camera it came off, an old Praktika, is a bit mouldy and smells as such, so I assumed a little haze would have crept into the lens. They can be self cleaned, but I will see first.

Technically only an upgrade of “1” I guess (M42 to M43).

My first bit of footage was eye opening. It has a similar look to my Olympus half frame 25mm. The colour is cool and muted, the contrast high and the Bokeh……odd, swirly, maybe jittery? Not sure, but certainly full of character.

It looks sharp also. Not modern “perfect” sharp, more clear and old school sharp.

The images below are; f2, then closer to show the quality, f4 and a portrait at f2.8. The portrait is a little subject movement and/or focus miss soft, but has a snappy look I like. I added the same small amount of de-hazing and saturation to the files, but did nothing to the natural colour of any of them. The f2.8 and f4 images look a little different becasue the aperture ring is quite stiff, so I had to reframe.

Some Oly lens images for comparison, both lenses shot at their minimum focus distance. F2.8 first, then closer then f4. The Oly needs some de-hazing at f2.8 (applied). Notice the jittery Bokeh on this lens, which looks similar to the helios, but in this image is more pronounced. I feel the colour is pretty close, but contrast is heavier on the Helios (more testing needed). Overall I rate the Helios as the better lens for contrast and colour, the Oly slightly sharper.

Below a simple Bokeh test, all wide open for each lens (Helios on top). Slight magenta caste to the Oly, but that may have been the angle.

A FHD video frame lift. No filter added, showing the gritty nature of the lens.

The adapter is tight and sure, being as simple as a tube needs to be. There is no play nor any aligment issues.

The one issue I may have to deal with though is excess oil on the aperture blades. This looks to be a common issue and one I can likely find a fix for, but so far, it has not actually made any difference, only being noticed very recently. The lens is manual only, so as long as they move when pushed, no issue.

Rig(s) Complete

A couple of handy arrivals last thing Friday ad I am almost on top of the rig thing, that as it turned out is now rigs plural.

The thing missing it seems was a proper handle on the left side (my bad). The camera can now be operated with either hand as the Camvate handle feels as solid and secure as the cameras own grip. Cables and focussing are also fine. The soft-rounded handle shape and width from the camera have sorted that.

In its first form, the monitor sits well and the two handles give this camera a solid and stable feel. For extended hand holding and pan follows, I think this will work well. This takes the 35cm HDMI cable.

In its next shape, the top handle extends the run-and-gun options. There is room for a shotgun mic, even with a Zoom H1n as pre-amp, or a light.

Moving on, basically the same as above with monitor front and low. This takes the 55cm HDMI cable.

Finally, “Interview configuration”. This allows the H5 on its shock mount to sit under the monitor with either the Shotgun capsule for interviews or the XY for performances. For this one I would use my heavy duty HDMI.

Now for the support act or the camera that was not even an idea until a few days ago.

Deciding to use an Olympus (not sure which one yet*) has allowed me to do another full rig out of the left-overs. The fast and low, hand held movement rig. This has reduced the pressure on the primary rig to be all things all the time. When I find it, a left over cold shoe adapter will go on the top cheese plate. Notice the Camvate name printed upside down on the cheese plate extension. Odd.

*I have a longer bar coming, so it could end up being the EM1x, the camera best suited to hand held video and usually reserved for sports, but even my oldest EM1 with a firmware update will do.

My goofy idea of re-purposing the mini side handle is ideal here as it allows my left hand (aka touch focus control) somewhere to rest, even a stabilising point if using the top handle and the screen gains a protective bumper. The whole thing is well balanced and sturdy. Not the neatest looking cage, but it is well thought out. The top plate has an optional cold shoe foot slide-in connector, meaning the whole thing is double contacted (or you can just secure the top plate down tight).

So after two rigs, all I have left to use is a Smallrig switch-out cheese plate and some screws.

As over the top as it sounds, a second camera, purpose built to do a different job with a different lens is so much faster and more convenient than trying to set up the Lumix differently in the field. Faster even than just changing lenses.

The way I want to use it is as different as the brands are, so having a rig that is just like donning a different hat for a different job makes as much sense as trying to re-think the use of the same camera and change it on the fly. I have enough filters and mics to set each up on its own also. The reality is also, the EM1’s are just better at some things.

The EM1x Becomes A Dual Role Monster

My kit for stills has been settled for a while now, robotic even.

I take out an EM1 mk2 with a long lens (by needs), EM10 mk2 with a wide (I prefer the flip up screen for the wide angle) and an old EM5 mk1 with a fast prime (I like how they handle noise). I can duplicate this, so I regularly rotate cameras and feel confident in my depth.

The EM1x is my big event, low light and sports specialist, the Pen F and Pen mini are my personal cameras and a couple of the rougher old EM5 mk1’s are used for “hack” work around home-most of my boring blog images.

The EM1x usually goes out on its own or with one of the EM1’s and the Em10/wide angle depending on the sport.

So, my best and most durable camera only gets an outing a dozen or so times a year. It is a resource that I would struggle to justify replacing, so nursing it makes some sense, but really, it is an unwarranted luxury to hold it back.

This lens is so useable, you find yourself using it like a short tele, then have to remind yourself it is not short by any measure.

Video on the other hand opens up some new horizons.

The EM1x has a few benefits over the EM1 mk2’s and the G9;

• It can use auto ISO in manual, something the Mk2’s cannot.

• Very stable touch control AF performance, that ideally suits its likely best-use scenario.

• Probably the best in camera stabiliser on the market currently (MIS-1) and is noticeably better than the G9’s for movement (the G9 has very good static stabilising and is set up for that).

• Added heft for even better stability.

• Nothing better to do most of the time.

• Can shoot 200mbs All-i 1080p. After some light testing, down sized C4K is still better, but All-i has advantages over the IPB format the G9 uses especially for busy subjects and fast movement. To be honest, this is OSMO territory, but filtering and longer lenses are problematic there.

• Nicer looking colour (no green caste) and possibly slightly higher sharpness than the EM1 mk2. In Natural with contrast turned down or Flat profile, it can be matched reasonably to the other two cameras.

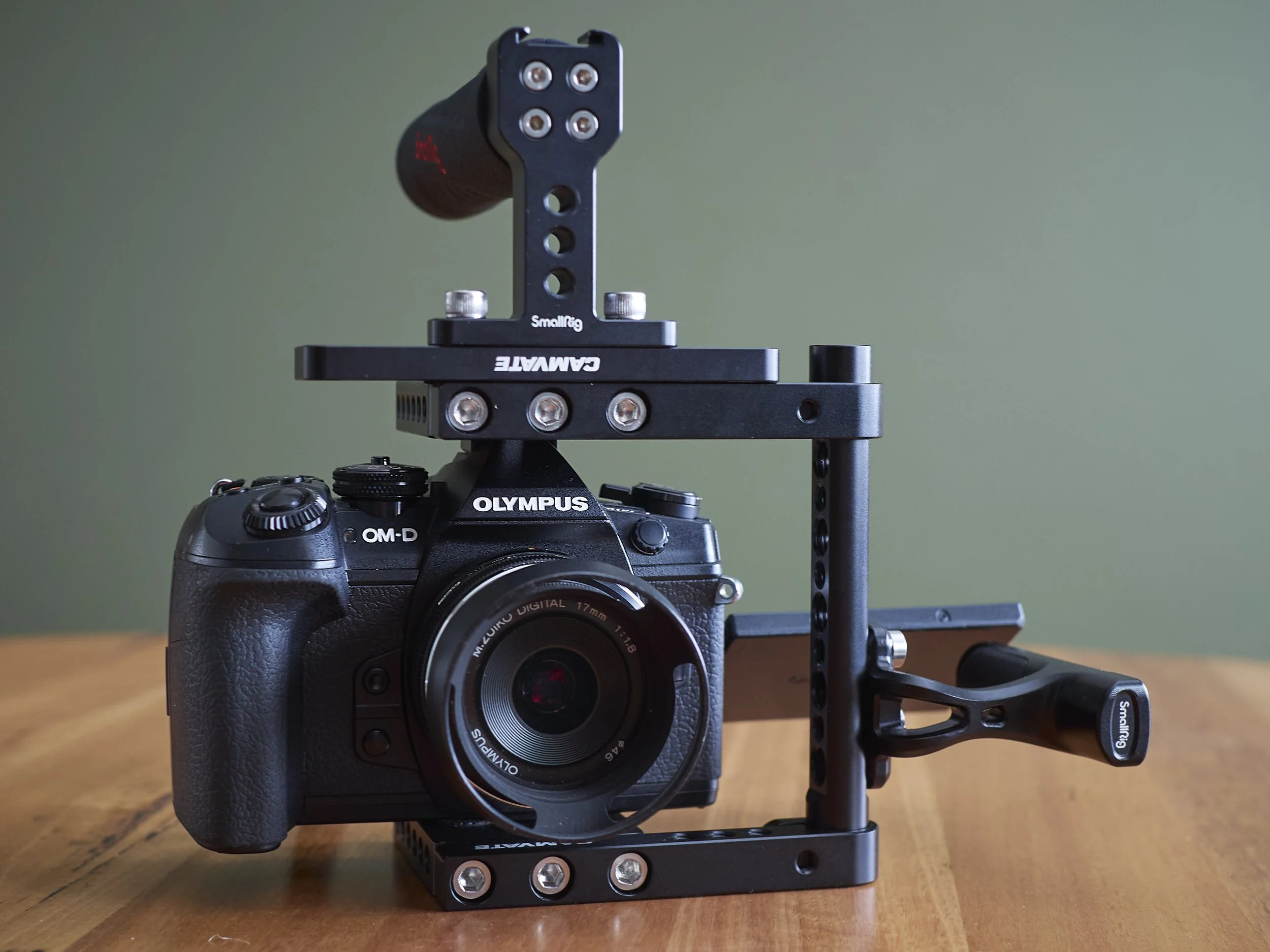

The Canvate cage with a 197mm extension column can fit it (I hope) and that cage’s blocky look may be softened slightly by the EM1x’s bulk.

My setup for this camera, purely as a run and gun option is the following;

• Manual with top dials in position 1 for F-stop and ISO, or position 2 for White Balance and Shutter. Both ISO and WB have auto options that are reliable, but can be switched out instantly if needed.

• The camera is in MIS-1 (sensor and electronic stabilising), slightly cropping the 17mm lens to about an ideal 20mm (40mm). This has a slight effect on 4k, less on 1080, but 4k is still ahead.

• Auto ISO, which with Exp Comp handles exposure smoothly.

• Touch AF (with the MF clutch option on some lenses). This is smooth, accurate and fast, ideal for fast movement and focus transition shots.

This, only bigger.

This is effectively the polar opposite of the G9’s settings. The AF and stabiliser on the G9 were known to be good, but not as reliable. The G9 with the new handle is much better for static shooting (static IS makes it even better), but for top handle following, the EM1x is superior. I want to be able to pick up an optional camera and just go, no thought, no fiddle and this is how this is set up.

If I need it for sport or similar, it can be easily removed and a Custom setting selected to suit the event in mind, changing its personality completely.

The fast 17mm has several benefits of its own. The long transition Bokeh this lens boasts helps with focus transitions, which in turn makes the f1.8 aperture very useable. The extra two stops it has over the 12-40 makes this the low light action lens. The lens ends up being roughly a 40mm equivalent with MIS-1 activated, which is perfect. If I want wider, I will use MIS-2 and get a wider lens with lower stability needs.

After a few test clips it looks like the MIS-1 mode is troubling C4k quality slightly, so I will use C4k in MIS-2 (sensor only), All-i 1080 in MIS-1 as it is smoother. I have also switched to Flat mode in All-i as it is gentler and more open (Pana like), and processes easily if needed. This camera will not do as much work as the Pana, so a little post if needed will be fine.

Thoughts On The Future Of MFT And My Kit

The new OM-1 looks to be a genuine improvement in a few areas that trouble MFT cameras.

Advancements across the board, especially in ISO performance, the “big” one for MFT, will see this camera and its Panasonic and Fuji equivalents continue the trend of annoying the big three. I still strongly believe that there is a place for all formats and that Olympus’s ability to offer all the advantages of MFT, with technological options to aleviate the formats short comings is near ideal. Who wants to shoot 46+ mp images for news based sport, when speeed and performance are more important and conversely, who needs to carry around a super speed machne for high res landscapes?

You can approach this from two ways.

A high res camera with large lenses and expensive sensor/processor combos for good performance, or a smaller, lighter camera with a sensor shift high res option, that does not need super lenses, massive sensors and processors. If Olympus and Panasonic can give us hand held high res, in camera depth control and noise performance that allows “A” grade low light sports capture (nearly there in all respects), then why full frame?Sure full frame can then match all of these with a bigger sensor, but do you need the F1 race car to adopt all the popular sports cars features? I.e, an expensive super car that you can drive sedately, or a motorcycle with high torque “haulage” and weather protected “luxury” modes.

The GH6 is also lifting MFT in video, at a time when all the competition are stretching, so playing catch-up is not an option. Panasonic need to stay in the front pack, but offering a serious MFT and full frame option validates both.

This makes me happy.

There will be something new to get later and a downward push on prices of the older cameras, all capable and really enough for me. It also means that the market has more players, therefore more ideas and stronger competiton in the mix.

I do also like the slight slowing of the industry, with new cameras every few years, sometimes after several upgrades of the last one, not seemingly constantly.

We have reached a point of unprecedented sufficiency. In some areas we are been over-catered to, if measured against our actual needs, so a slow down makes sense and allows great cameras to have a decent life span. The Canon RP and R, the G9 and G7, EM1/5/10 mk2’s and various Sony 6000 series and many Fuji’s are examples of cameras that won’t go away or that have not fallen dismally behind after years of service. They do their job, especially in image performance at an ever reducing price on balance with their newer comrades. Some advancements even come with un-needed stresses, like 6k video needed thousands of dollars of high speed storage to cover a days shoot, when high quality 1080 is all that is needed for most applications.

I doubt I will need much more to see me out photographically, but I also doubt that will stop me buying more.

About a 2mp crop from a 16mp 1Ds Mk2 file taken with a 1990’s era 400mm lens (the original shot had most of 2 full monkeys in it). Advancements are welcome, but it is handy to remember when enough is enough.

What would happen if the little guys folded and had to move on?

I like the look of Nikon at the moment. Probably the weaker of the three giants right now (Z9 excepted), I feel their new mount will see them through to the future with an advantage and the lens range is now as good as I need. Of course there would be a heap of cheap MFT around as well.

The reality is, if I lost my kit and needed to replace it right now, I would buy;

2x EM1x for general shooting ($2000 ea)

2x G9 for video and backup ($1000 ea)

12-100 f4 IS Pro

Pana 200 f2.8 with TC

8-25 f4 Pro

17/25/45/75 f1.8 primes.

Much as I have now.

Thoughts On The "Cinematic" Look And My Workflow

As a practical expedient, I am working towards a “dump and run” video work flow. it goes against my little voice, but it is what it is.

This requires footage that is basically ok to go out of the can. I know this will potentially* effect overall quality and processing options and my capture processes will have to be top notch but unless things change and a work flow designed around post processing is possible, I have to find a way.

I started off this jourey looking at a lot of Youtube videos about settings to use. In most cases, Natural profile was recommended with a variety of setting changes, some common, some contradictory.

The main one applied is -5 sharpness and sometimes up to -5 Contrast to improve the “Cinematic” look of the files (i.e. reduce digital clarity and hardness). This is also often accompanied by a Black Mist/Net/Glow/Bloom filter of some type to recreate the “Netflix” look and I took the bait.

For context, many of these users intended to still do some post. Without post processing, I need to get to the end point directly.

The main settings rarely varied, but occassionally a Vlogger would choose +0 sharpness and I must admit, I liked it.

So, what is “Cinematic” look and why are so many anxious to emulate it?

The “Netflix” look as I tend to call it is a soft, glowy, look with bloomed highlights and often subdued lighting. It looks big, cinematic (go figure), lush and not a little bit film-stock like.

Looking at some streamed TV the other day, I had a realiseation.

One show “Battle Creek” was a prime example of full Cinebloom capture. One scene, shot in a loft space, had so much blooming, faces were hard to see. I had not realised before how much this annoys me consciously or not.

I realised that two responses bubbled up in me. The first was an old general dislike of “soft focus”, especially “white” or haze softening. The second was a new found dislike for the “cute”, dreamy look that this show and others like “NCIS” or “Jag” are after and use softening filters heavily to achieve. This is generally limited to American feel good or lite shows, helping keep the mood sanitised. Even death is “nice” in these shows..

It is a look I really dislike. It was also something that the latest series of “Vera” used against the grain of previous series and English TV in general and my (our) response was again negative.

The next show I watched was “The Rookie”. This has a far more realistic super high definition look, warts and all. There may be some mild filtering, but it is mild. The likely culprit would be something like a Tiffen Glimmerglass 1/8 or similar because the highlight blooming was very controlled and blemish softening almost non existent. I felt for the actors, but they held together ok.

It is possible to have sharp and smooth at the same time.

This I like a lot more. It still has warmth when needed, but the biting sharpness took me to a happy place and suspension of reality is reduced.

This came at the same time as some feedback from work.

I shot a lot of small clips at the school swimming using a sharpness reduced Natural setting on the G9 and the basic Normal setting for OSMO footage. The OSMO got the most positive reactions. This was partly due to the creative angles it allows (under frikkin water!), but also the sharp, contrasty and clear footage it produces at base settings with nothing applied (it offers no real modifications apart from Cine-D in post).

The end result is a shift back to Natural mode with no mods to any settings at this point. I will do the same with the EM1x, but will add +1 Amber and -1 Contrast, bringing it closer to the G9. When I am capturing basically the same footage out of all three cameras and get some more feedback, then look at slight mods as needed.

I can also now add gentle filtering to this without washing out the already washed out.

*At the end of the day, sharp clear and brilliant video is the desired end point, so within reason, just like with stills, how you get there is irrelevant as long as you get there.

A Light Day With The 75-300 Olympus

Following on in the vein of the “Power of MFT” post, I shot a small swimming carnival yesterday for year 6 students. This was the day after a full 8 hour senior carnival, so I decided to go light.

The bigger carnival was held indoors at a 50m pool. It needed the 40-150 and 300 Pro’s for speed. This time, at a 25m pool in gentle sunshine, I managed the whole thing with the “kit” 75-300 on an EM1 and the 8-18 on an EM10.

One of many taken tight and quickly with the budget super tele. This lens just takes very nice images, regardless of its pedestrian specs.

The EM1 mk2 was well balanced and the lens responsive. Again showing the benefits of MFT format. This lens is super sharp up to 200mm, decently to excellently sharp above that, especially at f8. I have seen tests that put it equal with the 40-150 pro with teleconverter and I would believe that and then it adds even more reach.

The only real issues with it are, no weather sealing, slow maximum aperture and slightly less sure footed AF than the pro lenses, none of which have ever held me back within reason.

Still Feeling The Power Of M43

Like any camera format, Micro Four Thirds format has its strengths and weaknesses.

To me the strengths outweigh the weaknesses by more than a little bit, but some things have to be taken into account when looking seriously at the format*.

1) Visible Image Noise is mathematically more likely.

Simply put, a smaller sensor, all things being equal, will produce more noise at the same pixel count (same number of pixels on each sensor, not density per inch). This is physics, undisputable and on record. The answer to me comes in software advancements balanced with real world needs. There are already phones out there doing the near impossible, so bigger sensor cameras of all types will benefit here a bit like Formula One technology trickle down, but backwards.

For me, using ON1 combined with C1, I now consider ISO 12800 my upper limit for good quality images and do not think twice about using ISO 32-6400 files mixed in with better quality ones.

Is it the best noise performnace around? No, of course not, because all sensors are playing on the same field, but it is good enough to take my images, even those taken at ISO’s beyond my wildest dreams (and needs), into the “good enough for fine-art sized prints” category. Something I have noticed when given the chance to try a bigger format again, is that the difference is not as big as you might believe.

Being able to use a very long, f4 lens hand held for action subjects in poor light is my “stretch point” and ths format, with all its performance enhancers is well and truly enough.

Tight portraits from well outside of the subjects awareness range, using a 600mm equivalent lens in less than ideal light is now an expectation and this was before ON1 came into my life.

The reality is, arguments over small differences in sensor size have been less and less supportable for a while now and hypocracy in this space is rife, as it has been since the film era. For a time when the EM5 mk1 first came out, these little cameras were even kicking the big guys around the block, forcing them to lift their game in most areas (I had FF Canon and changed to MFT to follow the quality and performance).

2) The other full frame feature often cited as “superior” to MFT is depth of field control, namely shallow depth without the advantages inherent in the other direction compared.

The “you cannot get good Bokeh with MFT lenses” gripe is uneducated, innacurate and often ignores the practical application of depth of field (and what “Bokeh” really means). A full frame shooter with a super wide aperture portrait lens can produce the softest and most incoherent blur in the same situation at the same distance, but so can the MFT user with exactly the same lens, the lens just has twice the reach, which when you think about it, is actually a bigger benefit. When shooting Canon, my Bokeh king was the 85mm f1.8 used wide open. Never a fan of even faster apertures, this was enough and totally practical when that exact look was wanted. The Olympus 75mm f1.8 is effectively the same lens, but gives me the added benefit of greater reach and is by most measures, a better lens.

Now re-visiting this statement, what practical use is this super soft Bokeh? If you have a background that needs to be blurred out or the actual point of the image is to demonstrate Bokeh in all its (often miss-understood**) glory, then fine, but this can also be done with lots of software after the fact (again phone and compact camera tech). Now ask yourself how many images you want to take like this before it grows tired? The only area FF users can win without much effort is wide angle-shallow depth portraiture, an odd sub-genre really and one that MFT can still do with some effort applied.

The reality is, most FF users use f2.8 zooms for good reason. They offer versatility, good light gathering and a practical aperture range, which is why they are often the most popular flag-ship lenses in a range. A practical amount of DOF is shallow enough to softly bur out backgrounds, while keeping some context, but also guarantees enough depth to get the whole subject sharp.

In my own kit my 75 f1.8 is my Bokeh king (150 f2.8 equiv). It does not get a heap of use, the 40-150 Pro (F2.8 at 40-150 actual focal length-see below) being the work-horse. When I need it, it does the job as well as any lens out there.

Often the equivalency cited when describing an MFT lens, with terms like the 40-150 Pro being an 80-300 f5.6 equivalent, is missleading. The lens is still an actual F2.8 lens at 40-150, but it has double the magnification, so when multiplied out, the DOF is also magnified, but it is still actually an f2.8 150mm any day of the week. It is also a 300 f5.6. Sometimes when using my slow 4.8-6.7, 75-300 (truly horrifying/impressive FF specs), I do not get enough DOF!

How much less DOF would have been desirable? This was taken with the equivalent of a 150mm lens, quickly, quietly and accurately with an old EM5 at f1.8.

Conversely, I have the ability to use any lens in my kit at any aperture on offer without fear of over or under doing it. Basically, my working range is f1.8 for portrait style to F8 for landscapes style and f2.8 does most jobs perfectly. When I shot full frame, my range was f1.8, but only for showing off Bokeh, rarely used for serious work, with f2.8 to f16 for most subjects.

If I need more DOF, then I can get it at a setting 2 shutter speeds faster (or 2 ISO settings lower) than FF. In other words, depending on who you talk to, I have a DOF and/or light gathering advantage.

Ok, what else?

That’s really it.

The benefits of extra reach, smaller form factor and a fully developed system, including one of the more respected video systems now come to the fore. I can have a fast super wide that goes into a pocket, a top tier 600mm equivalent for the price of a mid range tele in FF and regularly have a speed advantage at the same cost/size ratio. My favourite Canon lens, the 135 f2L, was replaced by a 75mm Olympus that is at least its equal in quality, 15mm longer in actual reach, a little cheaper and half the size and weight.

Equivalent of 600mm f13+ and the wing and tip of the beak are a little out.

Looking at MFT from a brand to brand perspective, Panasonic and Olympus have been putting out one excellent lens after another, in a format that actually makes edge to edge sharpness easier to achieve. The big boys on the block have recently overhauled their systems, not once, but twice. First they lifted their game in their SLR stables, then, after tasting the winds of change, re-hashes them all again in mirrorless.

My issues with this system come in the form petty annoyances like having to buy smaller adapter sets to attach a Smallrig Mat Box, difficulty buying rarer super small filters, loosing lenses in the bottom of my bag, carrying too many options because I can etc. A friend was complaining yesterday about the limits of his bag with a FF body and two f4 FF lenses. I had four cameras (2 stills, 2 video), 3 pro zooms, a long tele and room for lunch.

What does the future hold?

Logically, smaller sensors should be on the rise, but the perceptions reinforced over the last couple of decades, cheaper sensor manufacture and the fear of losing ground to an opponent (especially a phone brand) has pushed the ever declining top tier of the industry in the other direction. Nikon is the only brand with a direction that to me makes sense. By using a larger lens mount than standard FF, they actually reduce DOF by another stop compared to FF, meaning you can buy cheaper and lighter f4 lenses with f2.8 depth characteristics.

I just hope MFT and 1” can hold on long enough to ascend to their rightful place as the true workhorse formats of the industry, not the perceived whipping boys.

*

*I have not looked into the new OM-1, so there may be even more to look forward to. We will see.

**Bokeh is a measure of the quality of focus transition at any aperture, focal length or lens to subject distance, not just f1.2 on a long lens.

Two Guns Pete (Or Using Olympus Again For Video)

The Panasonic has been a revelation.

The G9 with firmware 2.4 is a real video camera, not just a hybrid as it was on release.

As soon as I got it, everything video, just seemed to make sense.

So Olympus.

Dead duck?

Actually no.

The EM1 mk2 (latest firmware), is not at all a useless video camera in a Panasonic world.

What? Olympus for video….lets check that out.

First up, what does it do badly in comparison to the Pana?

The layout is not user friendly on the whole. No scrap that. The layout of clearly for stills shooters, by stills shooters, videographers be damned.

I am used to them as stills cameras, but for video, the whole thing seems to be a decent quality square peg rammed into a round hole. With a few exceptions* every button and dial control is less video oriented than on the Pana and you cannot set a video custom setting (you can set stills settings to jump from video to these, but some settings still don’t transfer well and going backwards is a nightmare).

An example among many is the ability to change the view finder/screen switch button to Record, but only in photo modes, not movie mode. basically you get only one option, shutter button or other. WTF?!. That smacks of a stills shooter constantly being afraid of hitting the record button by mistake. Very compact camera, very anti-video thinking. A choice of record on/off buttons would be nice in video mode guys especially when the retained functions are useless in that mode. On the Pana I have a left and right hand record button set up, because sometimes you need that.

*If you set up an Olympus for video, there are some shining lights such as useful function choice fot the two main dials and the option to switch functions with a lever. I have mine set to ISO and F-stop in lever position 1 and the less urgent Shutter and WB in lever position 2.

Peaking cannot be set and held, only coming on when you focus, so no passive confirmation. Magnification is the same. This is handy if distraction free stills framing is important, but for twitchy moving subjects in video, it means risking constantly un-focussing to check focus. I had this very issue with a spider on a gently wind blown web just today.

No Auto ISO in manual video, but you can set it in stills. Again WTF?!. What is good enough for one format should be equally relevant with the other.

All dials are “clicky”. The ISO control on the Pana (main rear dial) is gentle enough to use while filming and the nubbin control (also on the EM1x) is silent.

The screen is less helpful for manual focus than it could be, but it is less cluttered than the Pana. I can run the Pana without the big monitor, just preffer not to. The Oly really needs something for manual focussing or another solution (see below).

The colour is cooler and greener than the Pana. This is not a problem I guess, but not matching them is far from ideal and the controls for colour, contrast and sharpness are limited. Apart from a Flat profile (not OM-Log as it apparently has some grading issues), Natural or Muted profiles with the green turned down, there is precious little else on offer. The curve can also be changed and you have +/-2 control, but not very precice. It may be that I will have to accept a difference in colour and contrast unless I grade more professionally, so no shoot and drop. I am preferring Muted mode at -1 sharpness.

Really bad pre-amps. Just bad. ‘Nuff said.

What does it do better?

Some function buttons are similarly placed to the Pana, such as the twin front buttons, making some operations seamless.

The stabiliser is smoother and more natural feeling. It is also a smaller and lighter camera, meaning I can put my cold shoe handle on it without fear.

The AF is respectable, good even. Touch screen control is accurate and smooth. Ths means the poor MF screen is circumvented by using the superior touch AF option. Focus transitions, tracking and interviews may be better done with this camera.

Tell me more.

Auto exposure and white balance functionality is well supported (accurate). Shutter priority with auto ISO, and Aperture selection and then exposure comp applied, would likely work well enough for the fast moving situations I will task it for. If I use the EM1x, the nubbin control may be a silent option for exp comp (have to check).

It can shoot 200 mbs All-i* FHD. This is the highest bit rate to file type ratio in the EM1 and possibly the clincher. All-i is better for fast moving or constantly changing subjects, especially with high levels of contrast, changing lights (flash/strobe) and busy colours. Long-GOP, used by the G9 looks to be nearly indestinguishable from All-i for normal use (looking at several direct comparisons made by GH5 users), but All-i is still technically better in some circumstances as proven by its inclusion in the GH5.

*All-i creates a fresh, complete frame every frame. IPB (Long-GOP), that the G9 uses, creates a reference frame and only changes to capture what changes within that for the following few frames (a bit like animation, drawing a moving subject over a set background), so it is a much smaller file size overall and ideal for most applications. It looks like Pana has some pretty advanced algarythums for their Long-GOP IPB, only including All-i on the next level GH5.

The quality is more organic looking, less “perfect” than the Pana. The need to reduce sharpness and contrast in the Pana profiles seems less urgent with the Oly, which is good as there are fewer controls. I like the cooler palette for some situations and have found myself leaning towards the harder looking Cine-V with the Pana, which is closer to the Oly than the Pana Natural profile is.

So, what does this all add up to?

The Olympus may be a better run and gun camera with its excellent touch focus and stabilisers. Sound would likely be only used for synching with the Pana or Zooms.

It can also be better for fast movement in contrasty outdoors and for stage or event work when flash or strobes are in use. IPB can loose 10-15 frames in a row if the first catches a bust of flash, common with slow-mo.

The files will be big, but not ridiculously so if I stick to FHD and the camera will be the optional one, not the primary.

The colour and other controls are limited, but this is not insurmountable and I now have two different looks if wanted (especially if lenses are mixed).

I have extra cage options. No wastage and the fun of building 2 rigs :).

Summing up;

My G9 is still the video king. It has the best out of camera quality, the best maximum quality output and is vastly superior as a video-centric camera. This will do the bulk of my static or semi-static work.

The OSMO pocket comes in as the movement and “special angle” specialist. It can go into water, over head, handle fast movement and adds a super smooth gimbal dynamic.

The EM1 mk2 is going to be the moving B-cam, specialising in busier subjects and tougher light,smooth focus transitions and looser hand held work. I will use touch AF, which reduces the screens short comings, full IS with slight crop, with my 17mm which has both great AF and good Bokeh transition for that type of work. Basically, if the G9 is struggling for any reason (focus, stabiliser, format), the EM1 comes in.

Rigging the two up will be fun. The Camvate rig I have coming will likely go on the EM1 as it lacks a dedicated option, with an emphasis on hand held work only, no sound, no monitor. I may switch this up to the EM1x, as that camera only gets used for sport and big events at the moment and has the best stabiliser and focus, so my standard daily routine is untouched.

It will leave me a little short in stills gear, but I can always replace one or the other EM1 at a later date. Probably by the end of this year, an EM5 mk3 or EM1 2/3 will be an option, or I could just use the EM1x a bit more.

The Video Rig And Things I Would Do Again

My video rig has taken a little while and is not settled yet, but I have seen enough to know what I would do again differently.

The Niceyrig cage is great. The fit is very good considering it fits most Panasonic MFT cameras. Smallrig made a dedicated one for the G9, but it lacked the same real estate and could not be re-purposed if I went into a GH5/5s later and it still cost twice as much.

The top handles have forced much re-thinking. If I went again, I would have just gone for the 1446b or a wooden Camvate, and the direct screw-in type.

A side handle is still in the air also. I am torn between no handle (left hand is focussing most of the time anyway), the mini top handle I have employed partly as a protective bumper bar for my HDMI input, a proper side handle (coming), or something I have not yet discovered. The mini top handle is functional, but I keep adjusting it since mounting the monitor. That may also be because the monitor is in the wrong place.

The 759 monitor is a real surprise. I am equally impressed by its clarity and contrast and its usefulness. The thing really does make a difference. Latency has not been an issue and battery life is good. I don’t even know what half the features do yet, so it is more advanced than I. Perfect.

The biggect issues I have had with the onitor have been cabling. It is hard to find locally the right angled fittings and cable length/gauge. Several misses on line have resulted in a cupboard full of left overs, but at least I have spares. The Smallrig ultra thin 55mm HDMI cable and a single right angle adapter eventually did the job.

Mounting mics has been problematic, mostly because of my choice of mics. The Zoom H series require some real estate and a lot of vibration dampening, especially for run and gun mounting. I am sorely tempted to get a Diety D3 (not pro), simply to up my on board shotgun performance, but have not found a lot of comparison reviews that indicate it will make a huge difference to my existing mini shotguns (the Neewer reigns supreme at the moment).

I may need to go an NTG or MKE 600 to make any real difference and then I am competing directly with my SSH6 Zoom capsule. I do not regret the H5 for its versatility, but the shotgun, bought for static interviews and productions, is not probably a realistic on camera option for movement.

The reality is with mics, any that are close enough will do a decent job. Asking more of them than that leads to problems only a lot of money can solve.

This brings up the role of sound though. Much of the on the go footage I will be capturing is going to be sound track or voiced over. I may never need a shotgun mic for that type of shooting. Maybe an area cover or no mic at all is better and maybe a mini shotgun will be near enough if needed? Still might grab the D3, just in case.

A Hunch

I preffer the look of the over 10 year old EM5 mk1’s at higher ISO’s

The tight and even black grain is workable in colour and quite film like in mono, so it is no surprise to me that I use one as my third, high ISO-prime lens camera.

So, what happens when I abuse a file from one and hit it with ON1 No Noise?

All the files in this post were taken at ISO 12800. The befores are C1 with no extra processing, the processed ones are in-out through ON1 with it applying its automatic settings. Lightroom would be interesting. I gained at least one full stop of useful exposure switching over and early tests showed that ON1 managed to “fix” LR files nearly as well as the C1 files.

Not bad before and after. Quite useable actually. The trick is to avoid under exposure.

In early tests, the little EM5’s managed to hold together better than a lot of bigger sensor cameras, gaining quite a reputation for good low light and dynamic range performance. Time moves ever onward, but there is still life there. The tell is the washed out colour, but compared to other cameras of the time, this was far nicer than the “fruit tingles” colour blotching most had in truck loads.

This file was a litle under exposed. Ideal fodder.

Although the left file, C1 processed only and with no noise reduction used is actually not a totally lost cause, the right hand file is clearly cleaner and sharper. The difference however is not as dramtic as files I have processed from other cameras.

Without doing direct comparisons, I feel the newer cameras are actually better after the ON1 treatment, but the EM5’s hold together better without extra processing at meduim high ISO’s such as 1600-6400.

It may simply be that the EM5 does its own thing and ON1 has little more to add. In the early days of the super sharp sensors that the EM5 came in at the start of, designers had an open book to work with and performed minor miracles (mine put my 5D mk2 to shame).

Rigged Up Or.....?

My video needs at this point are not as great as my accumulated gear would indicate. The camera was a bargain, the lenses were already in my kit, but surplus to my needs and most other accessories were either reasnably cheap or already party done. The main issue to date has been with ironing out all of the little things.

So today my slightly longer Smallrig HDMI cable came (55cm as the 35cm was about a bees-d&%k too short).

Rig done as concieved after what seems like a never ending wait (6+ weeks from start to arrival of the last, finally right things).

On paper and in hand, this rig works as designed. I have seen worse, but I have also seen better.

Balance is the selling point here, both in capabilities and manual handling.

A finger placed under the front end of the handle, depending on the screen angle and battery weight, is the balanced middle point with left to right swing minimised, but the screen sits a little high for my liking making the camera a little low if held naturally by the handle or only chest high if held from behind (I can still put it to my eye though). I need it to be this high with this configuration to allow my mics (various) to be able to see under it.

In my mind I am picturing an “L” shaped dynamic, rather than a fighting wedge.

The whole thing feels a little spread out. It lacks immersion or immediacy.

Cabling is neat, the layout generally harmonious and the wrist strap a win for under $10. The strap lets me shift from the top to the side handle without any hassle and is easily thick enough to take the whole rigs’ weight if needed, an easy solution, that I thought was likely out of the question.

So, what would I like?

Needy me, would like a slightly lower profile, a more intimate setup and one with more top plate options than a single cold shoe. The coldshoe mount is an issue as it adds unwanted height and clutter rather than solutions for some of my mics.

My preferred 1446b handle is languishing unused. It is to me more comfortable and more secure, being a screw-in not cold shoe mount (I can also then use the cold shoe handle on an EM1, where the 1446b is useless without a cage). This handle sits lower meaning my base working height is higher-a good thing.

Last time I tried this handle the problems were many.

• The top cheese plate on the Niceyrig cage was completely hogged by its mounting foot, meaning nothing else could go on with it.

• It does take the monitor well, efficiently even, with a front mounted cold shoe foot, but cannot take it on the top (the top cold shoe is half depth, i.e useless).

• It sticks out too far behind to allow for eye-piece viewing,

• I stuggled to fit into my bag without dis-assembly, something the cold shoe handle did well. I found it could just fit and added rigidity to the bag, but it was tight.

I went looking for ideas.

As usual, searching for specifically what I wanted coughed up the same sponsored items over and over again. Looking for something else all together (side handles), I came across a couple of extension cheese plates. The winner was an 11cm long Camvate one. It has 4 securing rows, which may also take cables for protection and give me several places to mount it.

I think if I secure the third securing row back to the far left row of the Niceyrig top plate, the last securing row will hang off the right end and a cable can run through it after coming up through the left securing row and across the front.

The potential is for lower and more secure, direct-to-plate mic mounting, some neat cable looping and even more monitor options, at the same time as taking the low profile handle. I will aim to replace the cage top plate, fit the handle, then hopefully there will be enough room left to give me several top plate options, especially if the H5 is wanted. I can also still add the Smallrig mini cold shoe extension to this, which may take it out past the left side handle.

Just after ordering this, I found a bargain.

Camvate makes one of the universal cage options I looked at for the EM1’s. Compared to camera specific ones, they can be square and clumsy looking. They are far from a perfect, but work. I was also looking on and off for a wooden side handle. The two were prohibitively expensive for fringe ideas. I like my mini top handle as a jury-rigged side handle, but as the rig gets heavier, this is proving to be a little under-done.

I found a Camvate universal C-Cage (3 sides only) with a removable wooden handle for $80 au, which is only $30 dearer than the handle on its own and cheaper than some of their C-cage only offers. If I bought the 6 parts (2 side bar lengths are supplied) on their own, it would be at least twice the price.

By my rough measurements, the handle will fit my current rig perfectly as long as the 18mm hole spacings are standard (I measured and they look to be), if not the handle can stay on this cage, so nothing lost. Lots of ideas for the other bits. The EM1x will not fit, but anything else I have in mind will.

This gives me several options.

A second buildable cage (maybe a heavy follow-me one), somewhere to use all the left overs and maybe some other ideas. I am looking at picking up a cheap G7 or G85 at some point as a B angle camera (the OSMO as the movement specialist), maybe even an upgrade to a Black Magic Compact Cinema or just re-purpose a left over Olympus.

This handle is not as versatile as some, but I like it more than many. If nothing else, I have bits to add to my primary rig if needed.

In all likelihood the whole thing will lack balance and have catches I have not seen coming, but I want to try it and feel at least something will come of it, even if it is only the addition of a top plate to the existing rig.

Meanwhile, I finally do have a useable rig.

Some Advantages Of Skipping 4k Video (For Now)

Deciding to limit my 4k shooting to personal projects and very occassional pro use, I am relishing the many advantages of sticking to 1080p.

The obvious ones do not need to be gone into in great depth. Tons more space, less heat, more battery life, easier processing, are all well discussed, but still real.

The real benefits for me are the creative options that have opened up.

Some cameras shoot 4k well (my G9 for one and the EM1 mk2’s for that matter), some are stretched. Regardless, cameras generally have more options avaialble at lower quality settings*.

The G9 offers VFR or Variable Frame Rate at some settings. I have set three of my custom settings (C3/1-3) to 33% and 20% slow motion and 1250% time lapse. I can access these instantly, giving me direct camera to output control.

The lossless teleconverter is longer, basically twice as long. In 4k it is a handy 1.4x, but in 1080 it becomes a genuinely powerful 2.7x converter. This means that my 75mm f1.8, aready a 150mm equivalent with MFT converting, becomes something close to a 400mm f1.8! I can walk out the door with a single standard zoom and have effectively a 24-200+ f2.8 (FF 5.6)** equivalent. This means buying a prime lens is basically a double buy. For example, if I get the Meike 12mm (24), I also get a 32 (65mm) focal length or the 16mm (32) becomes roughly a 43 (85). This is no small thing, effectively doubling your lens kit and adding versatility at the touch of a button.

Bit rate is deep and all the best things about 4k are accessible in 1080, except crop-able resolution. 1080 ticks along with a ton of quality in reserve. 60 frame 1080 at 100-150 mbs with 10 bit 422 colour depth is better than many cameras 4k output. This is not always guaranteed, but with a Panasonic, there is as much attention paid to 1080 as 4k (Olympus on the other hand does very good 4k, but mediocre 1080).

*This does not mean lower visual quality, just lower potential quantity of that quality.

**2x focal length, but 2 stops deeper depth for the same light gathering.

Yin and Yang

If I had to choose just two lenses, my “desert island” lenses, then the 75mm f1.8 and 17mm f1.8 Olympus primes would be the two.

One is a no brainer, being likely the most technically perfect lens I have ever owned (from a cast of hundreds). The other was a reluctant purchase, made at a time when choice was not huge, so practicality ruled.

What they have in common; the same aperture range, metal build (but not weather sealed), fast AF (the 75 varies from ok to one of my best depending on camera, the 17 is always snappy), harmonious colour palette (but very different contrast and look) and nice manual focus.

Where they differ is the key. Each is a near perfect implementation of a no compromise, specialised tool.

Yin

The 17mm was purchased as my core standard/wide when options were limited and I intended to upgrade as able. On paper it is not without flaws and early reviews bare this out, but few users ever complain about it. Better lenses have been produced (20mm f1.4, 17 f1.2, Sigma 16 1.4 and Pana 15 f1.7), but I am happy to the point where I would keep it with any of those as well.

If the true measure of a lens is in good images taken, then this lens has become my bedrock.

The unique character comes out when the lens is applied to its intended environment, such as on the go street and environmental portraits, where the main subject is captured in environmental context.

Instant grabs are the name of the game.

Colour is a little old fashioned, almost film like and the lens handles hard or bright light very well. It is not perfect and when abused it will likely bite you, but use it well (as you should any lens) and you have a reliable tool that gives and gives.

Wide open in poor light and good detail.

The elongated transition Bokeh, which this lens has in spades is ideal allowing you to use near, or even not so near misses in focus and rely on zone focus shooting. I tend to set it at f2.8/5ft set with the clearly etched lens barrel markings and just shoot or in very poor light, f1.8 and let AF do its thing. Very little is unuseable, even with more extreme settings.

Manual focus is clearly emphasised with the click back ring, good throw and barrel markings.

This shot was taken wide open, pre-focussed at about 2m for the crowded corridor we were negotiating, the shot grabbed as we passed this side corridor. Even with a clear miss, the transition from in-to-out of focus is harmonious and acceptable detail is held all the way to the back of the tunnel. If my old 20mm Pana, newer 12-40 or 25mm lenses were used here, the more modern sharp/soft Bokeh would have made the file useless.

So, this lens provides good depth of field control, micro contrast, handling and responsiveness, all good traits for a wide standard.

Sometimes the sharpness can feel three dimensional.

An unlikely use, considering it is not a “perfect” lens, is for landscapes. It just does a really good job of bringing out details and tonal separation.

An added bonus is its video performance. It offers the same benefits as above with the G9’s 2.7x loss-less teleconverter making it a nice wide and portrait lens in one.

Yang

Its partner, as much for their differences as the things they share, is the 75mm f1.8.

This is a special lens in an entirely different way.

It manages to have smooth grace, brilliance and fine/hard micro contrast, which makes it a rarity in the Olympus stable. The rest of my lenses tend towards either strong micro contrast and busy Bokeh, or a smooth lushness and creamy smooth Bokeh, but rarely all of these in one lens.

It is hard to get across how sharp this image is. My A3+ printer is maxed out with tons to spare. EM5 mk1 and 75mm near wide open.

Its colour is similar to the 17’s, but the contrast more snappy and lush. I especially like the contrast and compression for cutting subjects out from the background.

A 150mm f1.8 is an odd focal length, but also a bit of a gift. I like its candid reach and feel it is the right lens to go with the 17 (35). There is enough of a point of difference in distance and feel to warrant changing.

Here is the best of it. Colour, sharpness, Bokeh and compression all with lightning fast and accurate AF.

Weaknesses?

Very slight, rare but fixable CA wide open and an image flattening, compressed look that can be over used.

As a video lens it also brings something. In 1080 with the Panasonic and the loss-less tele converter, it provides a 400 f1.8 to the kit and even in 4k you get a 200 f1.8. Seriously powerful.

I can honestly say, if I lost all of the images taken with just these two lenses, my portfolio would be halved.

Contenders?

The 25mm shares the same lush, brilliant colour and contrast as the 75, but without the benefit of the focal length or its biting but natural sharpness (it is very good, just not as good). They pair well, but share too much in common.

The 75-300 come surprisingly close at the short end, especially in colour and Bokeh, but at f4.8, it can never match the look.

The 40-150 pro is similar to the 75, but lacks the sublime Bokeh and I have found the AF on the 75 to be better in low light, which surprises me considering the 75 is the older lens. Bokeh is the big differentiator here. The 40-150 can be gorgeous or a little busy. The 75 is always sweet.

The 45 f1.8 has a similar look to the 17, making it a good partner, with much of the utility of the 75, but I can always tell the difference in the files.

Hidden Gem

Since adopting video, the 12-40 has been glued onto my G9, waitng (impatiently) for the cables and adapters needed to get my monitor going, finishing my cage-rig. Lots of minutes of test footage later, I feel I have the measure of the lens and its many strengths, but looking at Meike cine lenses (maybe later, not yet), it occurred to me, that if I went primes only, I would be stumped choosing just one at the moment (the G9’s built in tele helps making 1 into 2).

For stills it is easy, so theoretically it should be as easy for video, but creatively, there is more than a small chance my needs may be different.

I switched to the 17mm f1.8 today, a lens I love for street shooting in the past and close in action with kids in poor light more recently. It has gone from my first grab, to a seldom take, so re-purposing it for video felt very right, as long as it had a use.

Oh boy, what a find!

Wide open, focus is on the nearest mans hair and it is sharp, but the whole tale is told. This coherent whole with snappy sharp hero is very old school Leica like.

Turns out the long throw Bokeh the lens exhibits, something I have always appreciated for street shooting, is equally useful for video. The 12-40 has the fast drop off, creamy Bokeh so desired at the moment. The 17mm is often derided for its “poor” Bokeh performance, but I believe that is simply misidentification of a deliberate design strength.

The 17mm was designed for on the fly street shooting. Misses are a pain in this format of shooting and wholly unnecessary. The 17mm allows things not quite in focus to be easily retrieved if needed, transitioning slowly and naturally. Secondly it holds coherent shape in things well out of focus-hence “long throw” Bokeh.

In short, it is a story telling lens.

Shot wide open in late evening light, the focus fell on the mans back, but everything back to the umbrella is seemlessly rendered with no clear point of sharp-to-soft transition. The girl in the foreground is technically quite out of focus and a lens like my old 20mm Panasonic, the Olympus 25mm or the 12-40, would have likely lost her completely to blur, but the 17mm makes the image workable. As an added benefit, the man is snappy sharp also, giving the image two strong elements and a slight 3d effect.

Another benefit of this lens, one that goes well with its Bokeh characteristics, is the focus throw. A true cine lens has very long and smooth throw, but for a stills lens, when in true linear manual focus mode (ring pulled back), the 17mm has a reasonably forgiving throw, especially compared to the 12-40.

The AF is also lightning fast, again supported by the forgiving Bokeh, but MF is very useable.

Something I need to explore also is the loss-less tele converter option (roughly 40mm in 1080 or an 80mm equivalent). Retaining the f1.8 aperture and FHD quality, I have a “both ends of the zoom” range or more accurately, a story telling and genuine portrait lens in one. Add the 75mm and you also have a 150+400 f1.8 equivalent.

Softly Does It

Well, I went and bought a “misty” filter.

My criteria was pretty tight. Tight to the point I doubted I could get anything worth while.

Softness can come in many forms. I used to hate the sharp/soft look of earlier Canon cameras, but in hind sight, maybe they were after something more than just……. more.

I wanted the most invisible look I could find. One that did just enough to make the exercise relevant.

There are some good filters out there seemingly designed for my needs exactly. The Tiffen Black Glimmerglass 1/8 and Black Satin 1/8, manage to retain contrast and sharpness, while adding glow and very mild softening, just enough for the infamous “cinematic” look to start to show (aka softened enough to not look digitally sharp).

Scratch these as they are hard to get in Australia for a reasonable price ($130+ for a 62mm).

K & F has a 1/8 strength Black Mist that is noticeably weaker/more natural looking than the industry standard Tiffen Black ProMist 1/8, but after a deeper dive, it is still a little strong for my tastes.

Just before I pushed the button on one as the “least worst” option, I remembered a review from a week or two ago, that I watched just before I grew tired of the whole process. The Kenko Black Mist 0.5, which seems to be a fringe runner, limited to Japanese reviews or maybe it’s just a new contender. It seems to be obviously less “Netflix”* than the Tiffen, and even noticeably weaker/smoother than the K & F Concepts. It does however still add blooming to highlights and just takes the edge off digitally oversharp footage.

A reviewer compared it to the K & F 1/8 which he personally prefferred, as he felt the Kenko was “too clean” for his needs.

Music to my ears, Kenko it is. It also comes from a company I have delt with previously who are red hot on service (expect it tomorrow, with free freight).

Shooting 1080p in Natural, with sharpness at -5 and contrast at -3, I have a strong base for cinema friendly capture. With light, lens and aperture selection and other factors to draw from, the Kenko will just give me that extra emphasis on film-like gentleness and allow me to handle light sources with more controlled creativity. It looks like it blooms lights well, but is otherwise pretty controlled.

I honestly do not see myself using it for many shoots, but when I do, I want to have a little something to rely on.

*I rate these filters as NCIS (waaaay too strong), Netflix (a look that is what it is), Cinematic (which is nearly invisible, but you notice it when its not there) and Hard Documentary (none).

Changing Priorities Of The Exposure Triangle

The exposure triangle is the corner stone of still photography and differently, but no less importantly in videography.

If you get this knocked, then all the other stuff comes as needed, but if you cannot control these three in tandem, then the rest falls apart really quickly.

The basic concepts for those still learning are;

The three settings, Aperture, Shutter Speed and ISO all have dual roles.

They work together (or against each other) to get exposure right for the shooters needs, and contribute something creative into the mix, more or less. We will look at these with two criteria in mind. The first is creative control and creative potential, the second is damage mitigation or in other words, how the setting impacts quality if mis-used or improves it if used correctly.

Aperture gets a 5 for creative control and a 1 for damage mitigation.

Controlling the Aperture controls depth of field, which is for most photographers their first creative consideration. The landscape specialist uses deep depth, the portraitist shallow, but regardless, an uncontrolled aperture setting can force seemingly random and contrary results in your imaging. As for damage mitigation, if one of the other two settings is needed more for creative control, then the Aperture may be used for exposure balance.

Shallow depth of field, the main tool of the portraitist. Really brings out the character of the subject!.

Shutter Speed gets a 3 for creatively and 3 for damage mitigation.

Controlling the shutter usually takes the form of making sure it is fast enough to avoid motion blur, or conversely, to convey blurring deliberately in an often exaggerated form. In the past, film choices with fixed ISO’s and limited in workable range, forced an acceptance of some blurring in images, but as ISO tolerances become higher, perfectly still in almost any light is becoming more achievable.

ISO gets a 1 for creativity, and a 5 for damage mitigation.

ISO is the safety valve of the three. It determines the potential technical quality of an image and the sensitivity of the film or sensor to light, with the two extremes being directly opposed. If Aperture or Shutter speed are the primary creative controls, then ISO is often left holding the bag. ISO has always tended to be the limiting factor in the math that is photography. If you are using film, then the ISO is set, so film choice is a really big one to make, but in digital, ISO is flexible making life a lot easier. Very occassionally, a shooter will allow film grain or digital noise to become part of their creative process, more so with film or even video, but with so many processing options available now, noise is a poor substitute for a true film grain look.

*

My standard working technique from the dawn of time (seems like) is to use Aperture Priority, or Manual with Aperture as the primary setting. This is because more often than not, I am using depth of field as my main consideration, or even if Shutter Speed is more important in a perticular image, the Aperture setting is still controlled to some extent.

With Micro Four Thirds, ISO is the enemy, much as it has always been in photography, but many larger sensor cameras are starting to make it effectively an irrelevance. This means that using Aperture priority usually results in just settting the Aperture wide open as f2.8 on MFT which is f5.6 (at the same effective lens length) on a full frame. A good, safe working aperture with decent light gathering power.

Sometimes the balance between ISO, Shutter speed and Aperture can be vexing, but mastering it allows you full creative control.

I also tend to control the ISO, by either limiting its range in auto ISO or set it speficically to what works in a specific situation.

Very occasionally, I get caught with a slower shutter speed than I would like as I have allowed the camera to use it as its safety valve.

The solution, is to set the Shutter to what ever I feel is the minimum a lens would need, usually doubling the lens focal length at least (in MFT), or 1/250th is a good all rounder.

If the Aperture is effectively irrelevant, as wide open will never cause undue harm, and ISO is less of a problem now with better processing options, with the Shutter is locked in, I will never have a blurry image at least. This may not work with fast primes as f1.8, even in MFT format may be too shallow in focus depth to work, but with an f2.8 zoom, I think it would work well.

Of course the biggest issue is getting into habits that are contrary to my SOP for the last two decades or more.

Lines In The Sand

First up, I need to share with you where I am.

Today is a perfect Tasmanian day. I am currently sitting on my front steps in dappled sun light, with a pleasant temperature of about 22 decrees C. The day will get up to about 30 degrees, but Tasmanian summers can bless you with cool nights and warm days, which is just about perfect for comfortable living.

The cafe next door is a-buzz, people making the most of the last days before school goes back (our summer holidays are over Christmas). Even my boistrous dogs (a pair of three year old hunting/cattle dogs) are content to just sit in the sun and watch.

Sorry to all you northern hemisphere readers, but I am going to soak this up today and count my blessing, as the looming flip side is, although mild by the standards of some temperate climates, still cold and dark.

Anyway, lets look at some slight changes to my video shooting processes and thinking.

Camera Settings

I have been looking into the real benefits of 4k for my work shooting and have to admit, I see little or no reason to bother. There are a lot of things at work here, many hard to pin down without the years of experience shooting video I would love to have, but at the end of the day, the only times I can see myself using 4k are;

• Shooting for maximum post-processing potential (Log styles and 4k).

• Shooting for maximum play back resolution on UHD screens.

Otherwise, I see no benefit in 2.7 or 4k over 1080p for general use. I do understand that the resolution is measurably higher, but actually seeig that is dependent on a lot of other factors. Playback format, screen, viewer pay in, expectations and education, size of screen to viewing distance, along with other factors all play a part. Just like stills resolution, you need the benefit of direct and close comparison to actually see any differnece and even then it is relative and not the determining factor for “quality” of the image or footage.

Approximately a 12mp crop off an M43 sensor. Its all relative, oh and the shot of the shot was taken with a cheap phone at night.

I have a theory also that 1080, with sharpness reduced may also reduce the need for diffusion filters.

If there is a perceived resolution difference between UHD and FHD, then it is only going to make the footage more digitally “perfect,” something that, ironically, needs to be softened out with filtering to look more natural.

My custom settings now reflect this;

• C-0 or creative movie is left open to play with.

The next three are for use as is no post, but with room forpost as an option.

• C-1 1080, Natural -3/-5/-0/-1, 10 bit 422, 150mbs, 25 frames as my standard.

• C-2 1080, Natural -3/-5/-0/-1, 8 bit 420, 100 mbs, VFR, 50/150 (33%) for out of the camera slo-mo.

• C-3/1 1080, Natural -3/-5/-0/-1, 10 bit 422, 150mbs, 50 frames for movement andthe option of post slo-mo with sound.

My OSMO footage is still sharper looking, but I can fix that.

These two settings are a concession to post for projects and personal work.

• C-3/2 4K, Cine-V -5/-5/-2/-2, 10 bit 422, 25 frames for grading, but a soft touch.

• C-3/3 4k, Cine-D -5/-5/-2/-2, 10 bit 422, 25 frames for deeper grading (probably supplied unprocessed to an outside source).

There is a possibility aso that these may end up 1080, set for portait or low light etc.

The more important specs here are bit rates and colour depth (mostly 10 bit, 422 and 100-150mbs). This means more information, even in 1080, so better actual quality in real terms, not just more res. This also explains why cameras that only just enter the 4k world, usually by being stretched, often shoot way better 1080 than higher. The EM1’s are an anomaly here. They shoot very nice Cine 4k, but quite poor 1080, something that helped me decide to switch to Panas for video.

A final element to my thinking is apparently, exporting 1080 to 4k still shows some benefit for U-tube etc., but to be confirmed.

*

Camera Rig

Secondly, and it is still glorious here by the way, I have relented and switched back to the less sexy but more practical 2094c handle.

An older shot showing the Ulanzi triple plate. I will take another when the whole thing is together, using the cage and with the handle to right way around.

With the arrival of the secure cold shoe adapter, I tried it and found it just made more sense for a variety of reasons;

1. The handle sits higher and (for balance) off to the right of the top cheese plate (Niceyrig model for all Panas), allowing me to mount a variety of other attachments to the camera top. There are six top holes left (and four across the front), on which I intend to mount a forward mounted cold shoe extension arm. This will allow me to mount the H5 well centred and forward enough so there is nothing hanging out the back (its shock mount will be about where the 12-40’s zoom ring is). The H5 can still be easily read and reached for levels and even the long shotgun capsule only protrudes a little past the lens (I may get a base plate and rails, or just a rail to protect it). This is the only option I like for an on-the-go rig with the H5, but also gives me options with the H1 and mini shotguns. The weight of the H5 is not an issue, but bulk and length are. The 1446 really stifles mic options, blocking low mounting options and providing none of its own.

2. The whole thing is better balanced with a variety of lenses, allowing me to ditch my weights. The 1446 is really front heavy with the 12-40, but well balanced with light primes. I have used weights to fix this but they get in the way of tripod mounting, sometimes need to be added to the back handle and the added weight (which can be good), is also provided by other things.

3. It can be removed or reversed quickly if desired for packing down and added versatility. The locking pinon the new cold shoe adapter just adds peace of mind. The 1446 is a screw mount, which is secure, but not easily removed.

4. It has three monitor mounting options, front, front top and rear top. If the rear shoe is used when on a tripod for example, then I can mount a mic or light up front. The 1446 only has one real option, low front.

5. The front shoe is lockable, so I can confidently mount my Ulanzi triple cold shoe plate on it and attach my monitor off centre with the H5 opposite, or a set of mics and a light etc. The single front top cold shoe on the 1446b is terrible. It’s not even full depth, which means you have to mount a cold shoe on the front as option…..only.

6. I can hold the camera up to my eye, without taking the handle off. This gives me the option of using the camera without a monitor if needed. The 1446b forces me to use the monitor or rear screen only as it sticks out a couple of inches above the eye piece, basically mid forehead.

7. The handle comes with an allen key also, so I can lock/unlock most fittings without reaching for my tool case. This is especially handy for adjusting the monitor tilt head tension.

I still prefer the 1446b for low angle hand held when more stability or a lower profile are preferred, but at the expense of the Zoom and some other mics, so nothing wasted.

*

Diffusion just got complicated (or easier?).

Tiffen it seems makes a whole variety of Pearl, Satin, Glimmer, Mist, Net and Fog filters with and without a black base and each has at least 5 levels. They have an excellent, but confusing (way too many options) video on the subject and after watching it twice I am leaning towards weak end of Black Satin or Glimmerglass, but still too many. To be honest there are also so many variables involved it is hard to find concrete impressions (impressions in concrete?). One reviewer managed to make a 1/2 strength filter look stronger than a #2, just by having their model a few inches to the left, revealing more light.

The good news is, they are not all mist filters, the bad news is they are sometimes hard to split and expensive if you do not like what you get.

Sticking to 1080, using my known lens characteristics, lighting and my optional real-net filtering, I am still not convinced I need one.

And Now For Something Completely Different

Still photography, how I have neglected you!

Be careful in the woods, you might get tagged.

My wife and I went for a little walk the other day and I cursed my new found habit of thinking about video, but not stills. No camera! Today, given similar glorious light, we retraced our steps.

The local skate park is quite a thing. The council, deciding not to fight the taggers, but rather give them a place of their own, has allocated a 500 meter long flood wall for their use and included the skate park attached. Quite the palette.

Generally respected by low brow taggers, most of the art stays intact for a decent period of time. The layering is intense.

The little 14-42 EZ lens is sharp, but with some curvature or de-centering. Funny how that does not matter in the field.
